Инструмент:

http://www.plantuml.com/plantuml/uml/SoWkIImgAStDuNBAJrBGjLDmpCbCJbMmKiX8pSd9vt98pKi1IW80?switch

(я использую Google Chrome, в Internet Explorer не всегда работает)



Документация:

http://plantuml.com/activity-diagram-beta



Коротко из опыта:

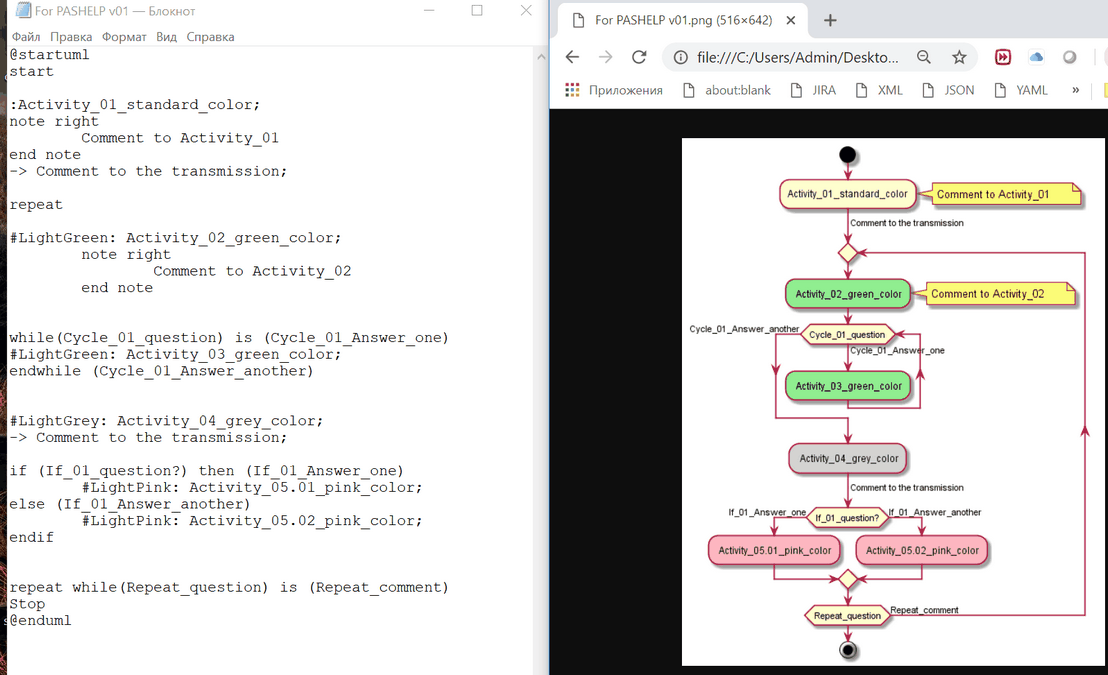

Activity Diagram

(текст для копирования под рисунком)







@startuml

start



:Activity_01_standard_color;

note right

 Comment to Activity_01

end note

-> Comment to the transmission;



repeat



#LightGreen: Activity_02_green_color;

 note right

         Comment to Activity_02

 end note





while(Cycle_01_question) is (Cycle_01_Answer_one)

#LightGreen: Activity_03_green_color;

endwhile (Cycle_01_Answer_another)





#LightGrey: Activity_04_grey_color;

-> Comment to the transmission;



if (If_01_question?) then (If_01_Answer_one)

 #LightPink: Activity_05.01_pink_color;

else (If_01_Answer_another)

 #LightPink: Activity_05.02_pink_color;

endif





repeat while(Repeat_question) is (Repeat_comment)

Stop

@enduml

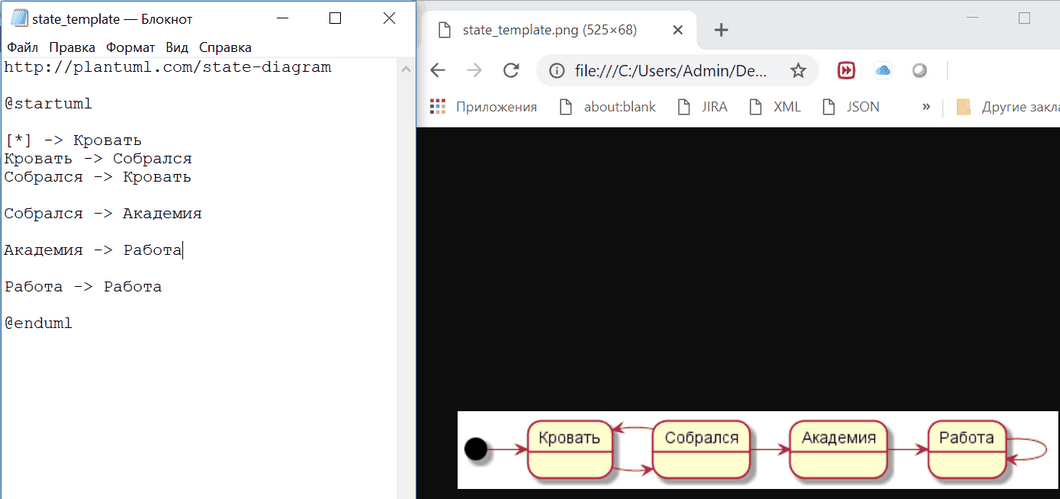

State Diagram







http://plantuml.com/state-diagram



@startuml



[*] -> Кровать

Кровать -> Собрался

Собрался -> Кровать



Собрался -> Академия



Академия -> Работа



Работа -> Работа



@enduml
